Deskripsi Produk
Rated Current: 80A (Amps)
Number of Poles: 2 Poles
Rated Voltage: 230/400V AC (Alternating Current)
Breaking Capacity: 10kA at 230/400V AC
Tripping Characteristics: B, C, and D curves (The “C” curve indicates moderate inrush current tolerance, suitable for commercial and industrial applications)
Frequency: 50/60 Hz
Mechanical Enedurance: 20,000 operations (ON-OFF cycles)
Connection Type: Screw terminal connection for secure and reliable wiring
Protection Class: IP20 (Protection against solid objects greater than 12mm)
Dimensions LxWxH : 81x52,8x75 mm
Minimal order 1 pcs
Konfirmasi sebelum order
Number of Poles: 2 Poles
Rated Voltage: 230/400V AC (Alternating Current)
Breaking Capacity: 10kA at 230/400V AC
Tripping Characteristics: B, C, and D curves (The “C” curve indicates moderate inrush current tolerance, suitable for commercial and industrial applications)
Frequency: 50/60 Hz
Mechanical Enedurance: 20,000 operations (ON-OFF cycles)
Connection Type: Screw terminal connection for secure and reliable wiring
Protection Class: IP20 (Protection against solid objects greater than 12mm)
Dimensions LxWxH : 81x52,8x75 mm
Minimal order 1 pcs
Konfirmasi sebelum order
Pengiriman
Material delivery process within 2 working days.
Dukungan Proyek
Tim SonusHUB dapat bantu kebutuhan B2B dan B2G.
Ketersediaan
10 tersedia
Ringkasan Produk
Nama

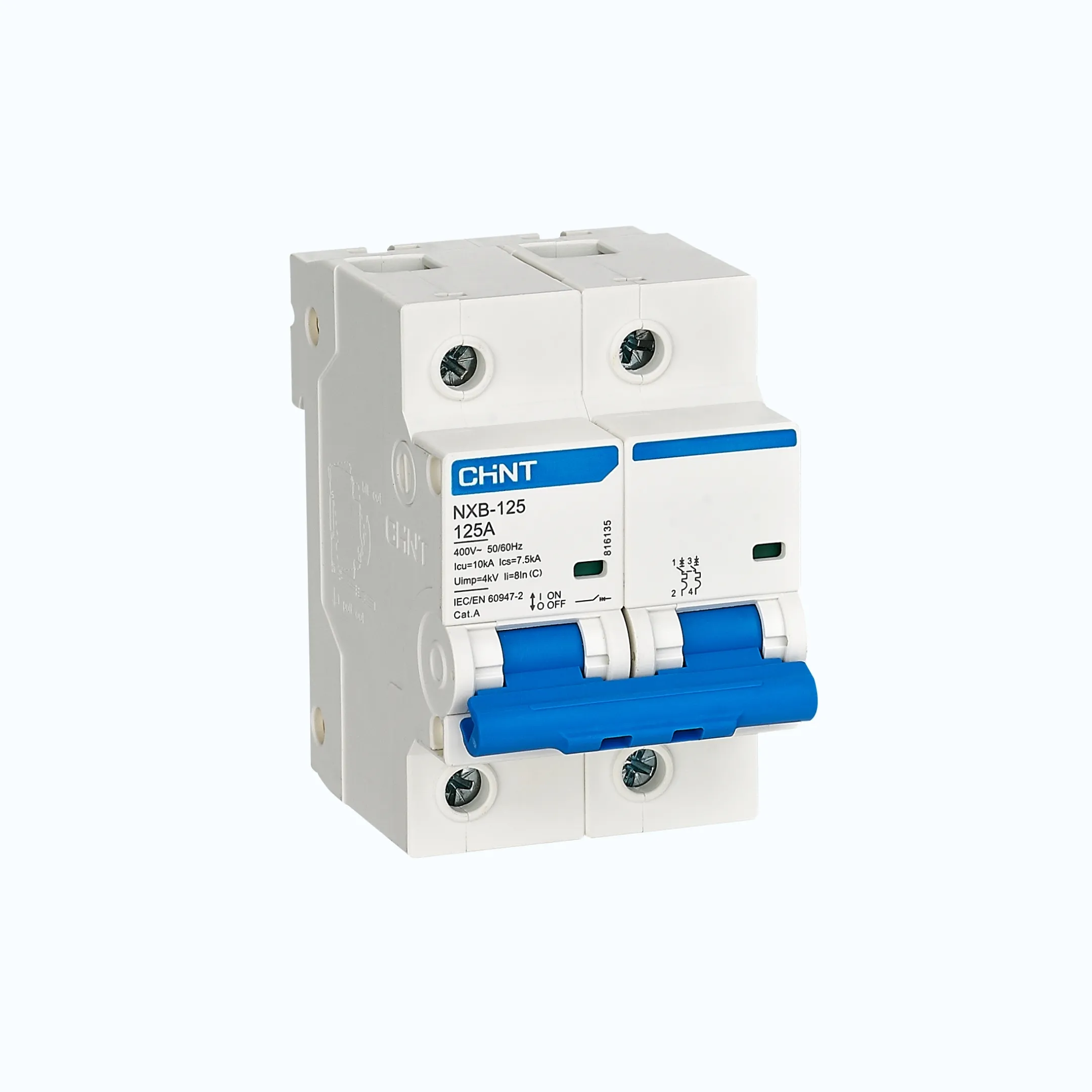

Chint MCCB NXB-125 2P C80 -816131
Merek
Chint
Kategori
BALANCE OF SYSTEM
Harga
Rp 314.701
Unit
Pcs
Min. Order
1 Pcs
